How to change modes on a Tow-Pro Elite

HOW TO CHANGE BETWEEN USER CONTROLLED AND PROPORTIONAL MODES ON THE REDARC TOW-PRO

Changing between modes requires the user to complete the following process:

NOTE: Changing modes can only be completed with the trailer connected.

NOTE: Ensure the vehicle has come to a complete stop before beginning the mode change process.

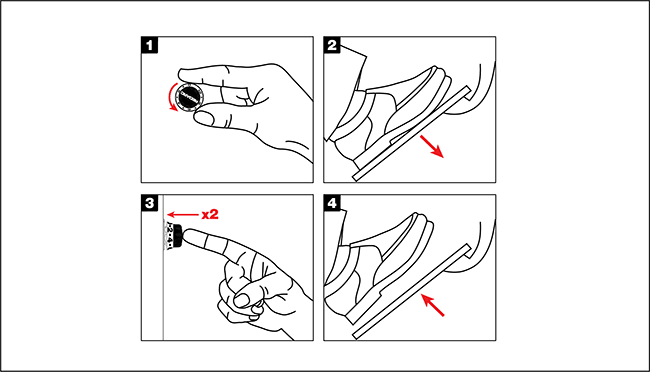

1. Set the knob to 0
2. Apply vehicle brakes
3. Double-click the knob (i.e. two pushes within 1s) to toggle the mode
4. Release vehicle brakes

NOTE: Ensure you adjust the knob to a suitable setting for your driving conditions and vehicle/trailer combination once mode change is completed.

Everytime the vehicle is turned on, the Tow-Pro will start up in the mode that was last selected, providing the black wire has remained connected to power/battery positive.
