Accessing ignition source when BCDC installed in trailer

In order to work with Variable-Voltage type alternators (aka Smart Alternators), BCDC chargers require an ignition input. This must receive starter battery voltage when the engine is running, and either GND or be disconnected when the engine is turned off.

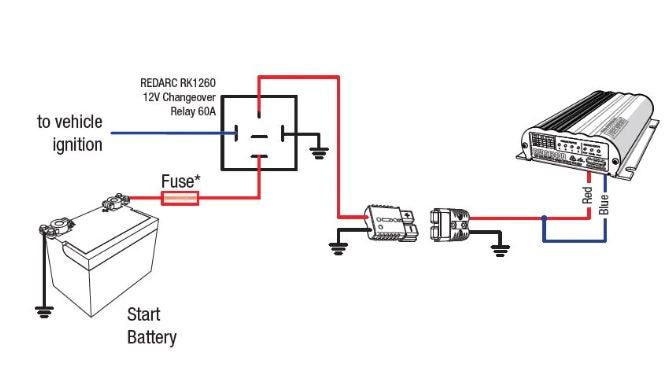

In some situations it may be difficult to run ignition feed all the way to the unit (for example, if installed in a trailer) - The following 'short-cut' using a RK1260 Relay Kit may be used.

For further assistance or technical support please contact REDARC directly.
