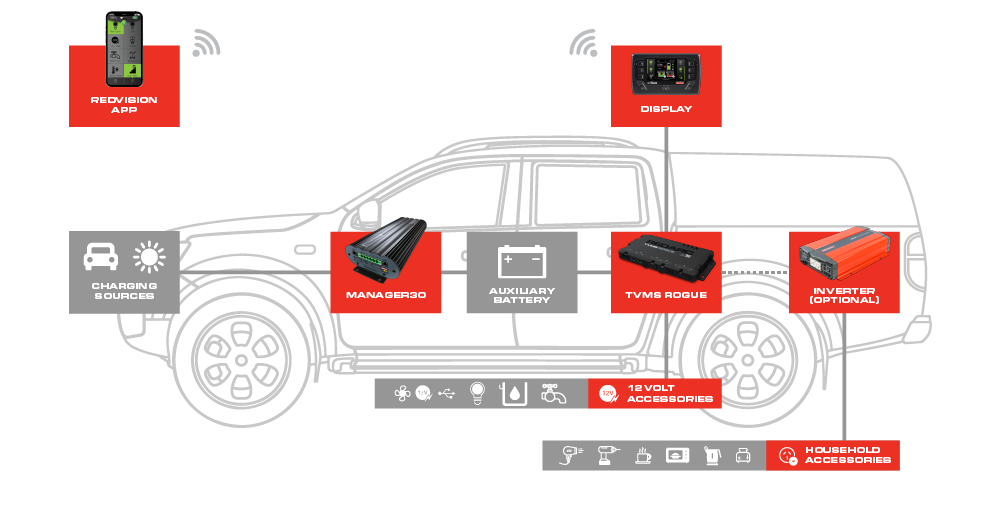

FLEXIBLE OFF-GRID CONTROL
At just 1inch thick and with in-built smart fuses, the TVMS Rogue offers a compact and flexible centralized power control solution for RVs, travel trailers, vans, trucks and campers.
With 10x 10A dimmable outputs the Rogue is the perfect solution for controlling and automating on-board lighting and low powered devices such as fridges, fans, water pumps and accessories.
8x switch inputs allow physical switches to be easily installed around the vehicle. Two analogue tank level inputs offer accurate tank level information and are compatible with common tank level sensors.
10X OUTPUTS
10A software-fused outputs for powering loads such as a fridge, fans, pumps, and lights with capability for dimming LED lights.
8X SWITCH INPUTS
Switch inputs (digital) for connecting switches that can be configured to remotely turn On/Off devices and loads in the RedVision system, or can control dimming functionality.
2X SENSOR INPUTS
Sensor inputs (analogue) for connecting
compatible tank level sensors (e.g. water level or fuel level), and devices that can measure voltage (e.g. measuring secondary battery voltage).
REDVISION APP
The RedVision App gives you the remote
monitoring of display functions including
battery level monitoring, System and input
source monitoring, System diagnostics, and Firmware update notifications.
Which RedVision System is right for you?
ROGUE redvision system
(TVMS1240KIT02-NA)
PRIME redvision system
(TVMSKIT05-NA)
COMBO redvision system
(TVMSCOMBOKIT1-NA)
How many total channels does it have?
10
10
20
Will it measure state of charge?
Yes
Yes
Yes
How many tanks will it measure?
2 with shared analogue inputs
Up to 6 with dedicated inputs
Up to 8
Can it measure ambient temperature?
Yes, 2 shared analogue inputs
Yes, 2 with dedicated inputs
Up to 4
Will it control my inverter?
Yes
Yes, with dedicated inverter output
Yes
Can I dim my lights?
Yes
No
Yes (10 channels)
Can I reset my fuses via the app?
Yes
No
Yes (10 channels)
Is there a physical backup switch on the device?
No
Yes
Yes (10 channels)
Can I use my phone to control my accessories?
Yes
Yes
Yes
What type of tank level sensors can I use?
Float & Pressure (up to 2)
Conductive/Probe (up to 6)
Both
Is it compatible with push button switches?
Yes
No
Yes
Will this simplify my wiring?
Yes
Yes
Yes
rogue redvision system
TVMS1240KIT02-NA
Compact RedVision System with light dimming, ideal for powering lighting and fridges and measuring up to two water tanks levels
At less than an inch thick and smart fusing, the included TVMS Rogue offers a small footprint, great for vehicles with limited space.
Dimmable outputs make the Rogue RedVision system ideal for lighting and low powered devices such as fridges and fans.
The Rogue RedVision System includes the main components you need to power your next build. Just add batteries, cables, and fuses.
prime redvision system
TVMSKIT05-NA
A RedVision System to suit setups with more than two water tanks and a mix of low and high powered devices. Ideal for camper trailers and mid-sized caravans.
RedVision System to suit setups with more than two water tanks and a mix of low and high powered devices.
6 tank sensor inputs, a dedicated inverter channel and 80A max current make the Prime RedVision System an absolute powerhouse.
The Prime RedVision System includes the main components you need to power your next build. Just add batteries, cables, and fuses.
COMBO REDVISION SYSTEM
TVMSCOMBOKIT1-NA
Combining the smarts of the Rogue and power of the Prime, the Combo RedVision System is the ultimate off-grid power solution.
Combining the smarts of the Rogue and power of the Prime, the Combo RedVision System is the ultimate off-grid power solution.
With 20 output channels onboard it’s ideal for vehicle’s with a high number of accessories and lights such as caravans and motorhomes.
The Combo RedVision System includes the main components you need to power your next build. Just add batteries, cables, and fuses.
SHOP TVMS ROGUE
COMMON APPLICATIONS
Truck
Van
Camper Trailer
Travel Trailer
Overlanding Trailer
Travel Trailer
