![Panel Mount Cabin Pressure Monitor]()
Panel Mount Cabin Pressure Monitor HMPS3000KITA$1,679.32The REDARC Hummingbird Panel Mount Cabin Pressure Monitor provides a highly visual readout to operators, letting them know when the cabin pressure drops below a critical level.
![Audio Alert System]()
Audio Alert System HMMP3016A$933.97REDARC Hummingbird 16 Channel Audio Alert System provides vehicle operators clear and precise verbal alerts when an input trigger has been detected.
![CAN Bus Interface]()
CAN Bus Interface HMCAN001A$644.77The REDARC Hummingbird CAN-BUS Interface is a simple signal output device for obtaining a vehicle speed pulse signal (VSS) from virtually any vehicle using a CAN Bus system.
![Idle Timer]()
Idle Timer HMLI003A$518.77The REDARC Hummingbird Idle Timer is designed to keep an engine running for a settable time after the ignition switch has been turned off.
![HMSM0010]()
![HMSM1010E]()
Silent Horn Display HMSM1010EA$1,782.68Replacement in-cab screen designed for use with the Silent Horn range.
![HMSM0001E]()
Silent Horn Antenna HMSM0001EA$1,288.57Replacement antenna designed for use with the Silent Horn range.
![HMSM2200E1KIT]()

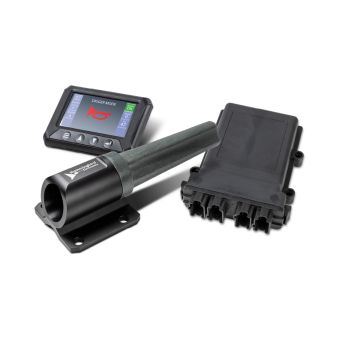

Silent Horn Single Antenna for Diggers HMSM2200E1KITA$3,821.00Replace traditional audible horns in diggers with silent RF-based alerts with REDARC Hummingbird’s Silent Horn for Diggers, a wireless machine-to-machine communication solution.
![HMSM2000E2KIT]()

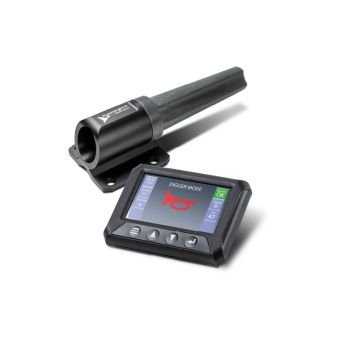

Silent Horn Dual Antenna For Trucks HMSM2000E2KITA$4,091.79The Silent Horn Dual Antenna for Trucks is a wireless machine-to-machine communications solution, replacing traditional audible horns with silent RF-based alerts to reduce noise pollution on worksites.
![Silent Horn Single Antenna For Trucks]()
Silent Horn Single Antenna For Trucks HMSM2000E1KITA$2,803.22Replacing traditional audible horns with silent RF-based alerts, the Silent Horn Single Antenna for Trucks is a wireless machine-to-machine communications solution, reducing noise pollution on worksites.
![Isolation Verification Control]()
Isolation Verification Control HMLI005A$1,129.13The REDARC Hummingbird Isolation Verification Control gives a visual readout on your vehicles true isolation state. Used to create a safer work environment by keeping your employees safe.
Monitoring
REDARC Hummingbird offers a wide and varied range of monitoring devices, it includes products such as battery monitors, data loggers CAN-Bus adapters, cabin pressure monitors and RF wireless monitors and much more.
MONITORING FAQS
HOW TO UPLOAD AUDIO FILES INTO THE AUDIO ALERT SYSTEM?
Audio files such as MP3 and WAV files can be loaded onto the Audio Alert Systems internal memory using a microSD card (not included). A text to speech program can be used to create customised voice messages for each input. The user manual provides a link to an example program.
Once created, the voice files much be named correctly so the device can understand how to use them. The filename specifies the input number, high or low trigger type, volume, repeats and delay before playing. See user manual for the naming format.
The correctly named files can then be placed directly onto a microSD card – don’t place the audio files in a folder/directory. The MicroSD card can then be inserted into the device. Hold the ‘Test’ button on the circuit board, until the LED starts flashing purple and you hear ‘Programming’ from the speaker.
Once completed, removed the microSD card and power cycle the device. A short press of the ‘Test’ button will confirm the files are working correctly.
CAN I CHANGE THE TIME DELAY BETWEEN MESSAGES REPEATING?
Yes, the delay between plays can be set. Please contact HMBE for information on advanced configuration.
CHANGING THE VOLUME KNOB DOESN'T WORK?
After adjusting the volume, press the ‘Test’ button next to the volume knob for the volume change to take effect.
CAN I LEAVE MY MICROSD CARD IN THE DEVICE DURING NORMAL OPERATION?
Yes you can, however, this is NOT recommended when used on vehicles or vibrating machinery. Vibration on the microSD card holder can cause intermittent operation, which is why audio files should be copied to the internal memory.
THE UNIT DOESN'T RECOGNISE MY SD CARD?
The SD card must have a capacity of 8GB or less and it must be formatted using the FAT32 filesystem. If there are still issues, try a different brand card.

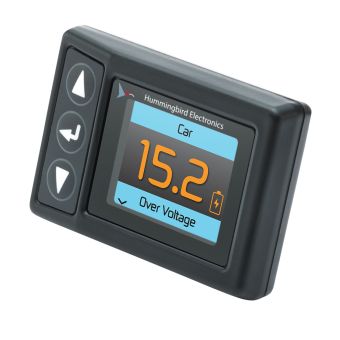

DOES THE HMRF2000B MONITOR LITHIUM BATTERIES?
Yes, the HMRF2000B can monitor lithium batteries.
