At just 1inch thick with smart fusing, the TVMS Rogue offers a compact and flexible power control solution for RV, camper and truck applications.

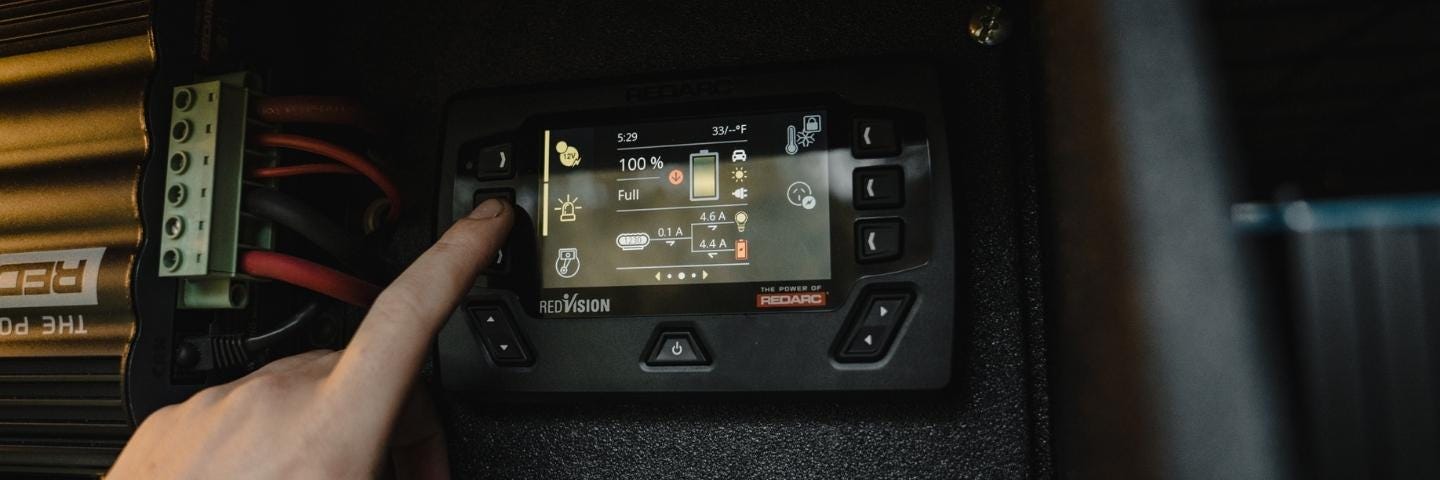

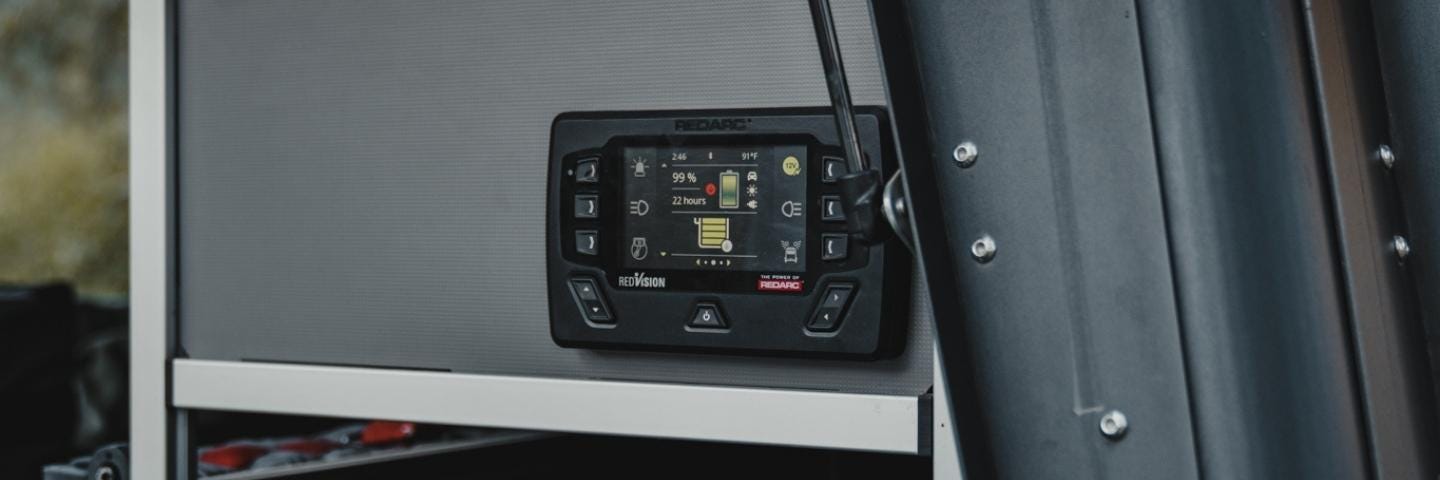

When paired with a Manager30 (sold seperately) and RedVision screen, TVMS Rogue provides real time and accurate state of charge, power input/output and ambient temperature information.
Two analogue tank level inputs offer accurate monitoring of multiple tanks and the Rogue is compatible with most common tank level sensors.
ROGUE vs PRIME
ROGUE (TVMS1240)
PRIME (TVMS1280)
Power input voltage
9 - 16V
9 - 16V
Maximum output current
40A
80A
Output channels
10 x 10A
5 x 10A and 5 x 30A
Sensor inputs
2 Configurable analogue inputs
6 tank level, 2 temp, 1 voltage
Operating temperature
-4℉ to +158℉
-4℉ to +140℉
Storage temperature
-40℉ to 176℉
-40℉ to 185℉
4.3" RedVision display included
No, sold separately
Yes
Temperature sensors included
No
Yes
Weight
1lb
4.4lb
Dimensions
9.8" x 5.1" x 1"
15.2" x 2.3" x 5.4"
CONTROL
The TVMS Rogue allows complete control of multiple on-board devices including lights, fans, fridges, and pumps. Each of its 10 output channels include dimming and the built-in switch inputs make the Rogue perfect for lighting circuits. With the Rogue connecting to up to 8 physical switches, control is not just limited to the RedVision screen or app. It enables lights to be controlled from each room of an RV or for the addition of reed switches to trigger lights when opening a door for example.
AUTOMATION
Save time and energy by using RedVision to automate those mundane tasks. With the press of a button, switch off everything except for your fridge or power down non-essential loads when your batteries are running low.
For the complete RedVision solution, pair your TVMS Rogue with the Manager30 battery management system. Find out more here.
FEATURES:
- 10x 10A dimmable outputs
- 8x inputs allow for use with physical switches
- Compact size
- On-board smart fuses
- Streamlined installation and configuration
- Fully programmable*
- Accurate analogue tank level inputs
APP AVAILABILITY
*TVMS Rogue Configurator app available now for iOS but coming soon for Android. The configurator app is only required for initial installation and set up. The user app is available now for both iOS and Android.
SCREEN COMPATIBILITY
TVMS Rogue is compatible with DISP4300-RC models manufactured from January 2023 (serial numbers beginning with "23"). Displays manufactured from July 2022 to January 2023 are upgradeable (serial numbers "2207" to "2212").
| Warranty | 2 Years |
|---|---|
| Input Voltage | 9 - 16V |
| Max. Rated Output Current | 40A |
