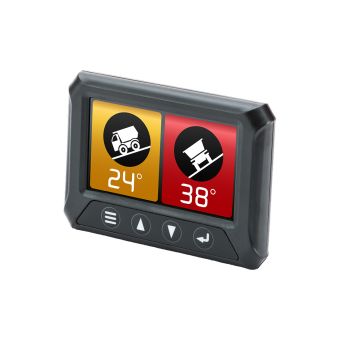

![Dual Axis Inclinometer - Active, Incl. 1° Sensor]()
Dual Axis Inclinometer - Active, Incl. 1° Sensor HMDS2000Special Price A$1,677.08 Regular Price A$1,863.42The REDARC Hummingbird Active Dual Axis Inclinometer including 1 degree standard sensor is a full colour inclinometer offering visible pitch and roll readout for operators with configurable warning and alarm buzzers.
-
![Dual Axis Inclinometer - Elite, Incl. 1° Sensor]()
Dual Axis Inclinometer - Elite, Incl. 1° Sensor HMDS8000Special Price A$2,324.07 Regular Price A$2,582.29The REDARC Hummingbird Elite Dual Axis Inclinometer including 1 degree standard sensor is a visible pitch and roll readout for operators. The Elite includes data logging.
-
![Dual Axis Inclinometer, Elite 0.1° Sensor]()
Dual Axis Inclinometer, Elite 0.1° Sensor HMDS8100Special Price A$2,573.98 Regular Price A$2,859.98The REDARC Hummingbird Elite Dual Axis Inclinometer including 0.1 degree standard sensor is a visible pitch and roll readout for operators. The Elite includes data logging.
-

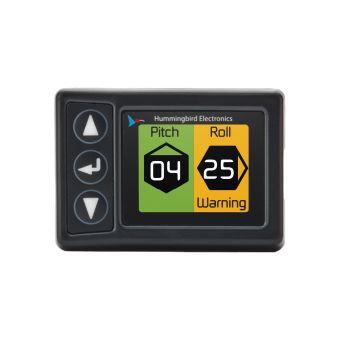

![Integrated Compact Inclinometer]()
Integrated Compact Inclinometer HMDS0400Special Price A$453.54 Regular Price A$503.93The REDARC Hummingbird Integrated Compact Inclinometer is used to measure pitch and roll with the use of an Integrated Accelerometer.
-
![Dual-Axis Inclinometer - Compact]()
Dual-Axis Inclinometer - Compact HMDS0500Special Price A$981.82 Regular Price A$1,090.90The REDARC Hummingbird Compact Dual Axis Inclinometer is a small and compact inclinometer which gives operators an accurate pitch and roll readout, ideally suited for farming and smaller construction machinery.
-
![2 Axis Tilt Sensor MODBUS, 1 Degree Precision]()
2 Axis Tilt Sensor MODBUS, 1 Degree Precision HMTS2M0000BSpecial Price A$492.77 Regular Price A$547.51The REDARC Hummingbird 2 Axis Tilt sensor is a 1 degree sensor utilising MODBUS over RS485.
-
![2 Axis Tilt Switch]()
2 Axis Tilt Switch HMTS2CFG10BSpecial Price A$296.10 Regular Price A$329.00The REDARC Hummingbird 2 Axis Tilt Switch is a user configurable, accurate and simple tilt switch with a 0-64 degree switching angle.
-
![USB Configurable Tilt-Switch]()
USB Configurable Tilt-Switch HMTS2CFG0Special Price A$677.16 Regular Price A$752.40The REDARC Hummingbird USB Configurable Tilt-Switch is an accurate tilt switch with voltage outputs.Typically used in automation systems where voltage output is required.
-
![2 Axis Tilt Sensor MODBUS, 0.1 degree precision]()
2 Axis Tilt Sensor MODBUS, 0.1 degree precision HMTS2M3000CSpecial Price A$703.93 Regular Price A$782.14The REDARC Hummingbird 2 Axis high precision tilt sensor is a 0.1 degree sensor operating on RS485.
-

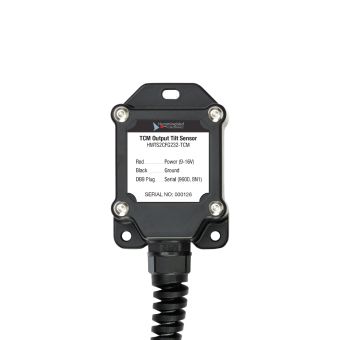

![Dual Axis Tilt-Sensor - TCM Output]()
Dual Axis Tilt-Sensor - TCM Output HMTS2CFG232-TCMSpecial Price A$658.01 Regular Price A$731.13REDARC Hummingbird's RS232 output Tilt-Sensor provides 0.1 degree accurate pitch and roll angles in a serial message compatible with Trimble's TCM protocol.
-
![Integrated Compact Ball Bank]()
Integrated Compact Ball Bank HMBB0400Special Price A$461.59 Regular Price A$512.89The REDARC Hummingbird Integrated Compact Ball Bank measures and displays the roll of a vehicle or machine.
Tilt
REDARC Hummingbird offers a range of vehicle stability monitoring devices including inclinometers and tilt switches, focused on improving safety, based on dual axis tilt and roll sensing of your mobile machines.
TILT FAQS
WHY IS MY INCLINOMETER ALARMING AT LEVEL?
REDARC Hummingbird's inclinometers can differentiate between left and right roll and forward and back pitch. Please make sure that limits to the front and right are setup as positive angles and that limits to the left and back are set up as negative angles. For an example, if your pitch settings are 40 degrees up and 60 degrees down, set the limits to +40 and -60.
HOW DO I REDUCE THE EFFECTS OF VIBRATION ON MY TILT SWITCH?
Imagine for a moment that your tilt switch is a glass tube with a ball-bearing in it. As you roll the tube left and right, the ball-bearing rolls left and right. Shake the tube and the ball-bearing rattles all over the place. Now add some water to the tube. The rate at which the ball rolls slow down and it's response to vibration improves. Now add syrup; the balls rolls really slowly but is much less prone to vibration. This is known as damping the tilt switch. With electronics tilt switches, we have maximum control and can change the damping factor to reach an optimal response where the sensor is quick enough to respond but slow enough not to respond to the effects of vibration. Hummingbird Electronics' USB tilt switch is a good example of a tilt switch with configurable damping levels.
HOW TO INSTALL DRIVERS FOR THE USB CONFIGURABLE TILT SWITCH?
Please download the tilt-switch configuration software from the manufacturer or distributor web-site. The download will be in the form of a zip file, which needs to be extracted before installation. Once extracted, double click on setup.exe and the software will install. Please note that the software will not be fully functional until a tilt-switch is connected to the computer via a USB port. When the tilt-switch is first connected to a computer via USB, the Windows operating system will require a driver to be installed. The driver is included in the installation and can be found in a directory called \Drivers. Specify this directory when asked by the Windows operating system. Once installed, run the tilt-switch configuration software and press the connect button to connect with the sensor. The pitch and roll graphs should now start to operate indicating that a connection has been achieved.
