Tow-Pro Wiring Kits

REDARC offer a range of Tow-Pro wiring kits that are directly compatible with 16 popular 4WD vehicles. The wiring kits provide 'Plug and Play' style connectivity. Each vehicle specific wiring kit will ensure installation will now become quicker and more convenient.
The introduction of REDARC’s Tow-Pro V3 and Tow-Pro Elite 12V included an upgrade to the data cable that connects the Remote Head to the Main Unit. learn more

View as Grid List

3 Items

per page
Set Descending Direction
  1. Universal Tow-Pro Extended Wiring Kit TPWKIT-014-KITS
    As low as NZ$277.15

    The REDARC TPWKit-014 is an Extended Universal Tow-Pro Wiring Kit that supports the installation of the Tow-Pro electric brake controller providing ‘Plug and Play' connectivity into a range of vehicles.

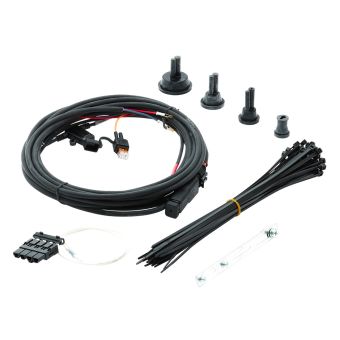

  2. Universal Tow-Pro Wiring Kit TPWKIT-013-KITS
    As low as NZ$277.15
    The REDARC TPWKit-013 is a 1.8m Universal Tow-Pro Wiring Kit that supports the installation of the Tow-Pro electric brake controller providing ‘Plug and Play' connectivity into a range of vehicles.
  3. Wiring Kit to suit Ford Ranger and Everest TPWKIT-012
    NZ$385.25
    REDARC TPWKIT-012 wiring kit suitable for all current model Ford Ranger and Everest vehicles.
View as Grid List

3 Items

per page
Set Descending Direction

REDARC provide universal wiring kit options for the Tow Pro Elite. The difference between the Universal Wiring Kit (TPWKIT-013) and the Universal Extended Wiring Kit (TPWKIT-014) is the Universal Extended Wiring Kit (014) kit comes with a longer power harness for the increased cable run to the start battery.

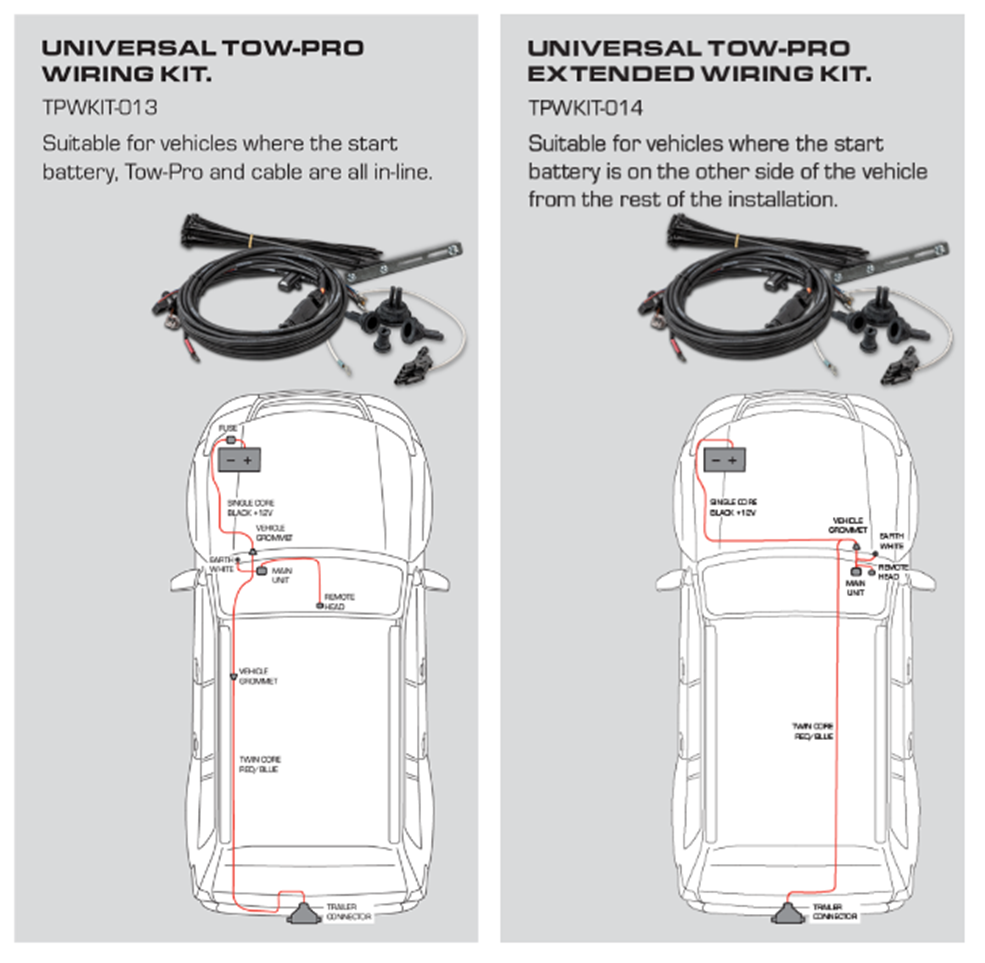

Please see picture below to aid in your decision. Note that if you are unsure, get the TPWKIT-014 kit as this will give you more cable to work with in your installation.

The popular REDARC TPWKIT’s will for a period have both the V2 CAT5 cable and new V3 cable included.

Vehicle

Part Number

Ford Everest/Ranger
not compatible with Tow-Pro Elite 12V

TPWKIT-012

Holden Colorado

TPWKIT-013

Mazda BT-50

TPWKIT-013

Isuzu (all models)

TPWKIT-013

Mitsubishi Pajero

TPWKIT-013

Mitsubishi Triton

TPWKIT-014

Nissan Navara

TPWKIT-014

Toyota Hilux

TPWKIT-013

Toyota Fortuner

TPWKIT-013

Toyota Kluger

TPWKIT-013

Toyota LC200 & LC300

TPWKIT-014

Toyota Prado

TPWKIT-013

Volkswagen Amarok

TPWKIT-014

For TPWKIT’s already in the field that require a V3 cable, contact REDARC directly to organise delivery.

REDARC have a range of Tow-Pro Elite remote head wiring cables in lengths from 1m - 6m to increase the flexibility of installation, while a range of US vehicle specific wiring harnesses provide the ability to connect the Tow-Pro Elite directly into the factory towing package connector behind a vehicle dash.

  • V&V2 utilised a CAT5 cable with twin RJ45 connectors
  • Tow-Pro Elite V3 utilises automotive grade 8 pin connectors
  • The Tow-Pro Elite 12V is compatible with all Tow-Pro Switch Inserts except TPSI-008, TPSI-010, TPSI-011 and TPSI-012, and also compatible with all Tow-Pro wiring kits
  • Tow Pro-Elite 12V is not compatible with the Ford Everest and Ranger.
